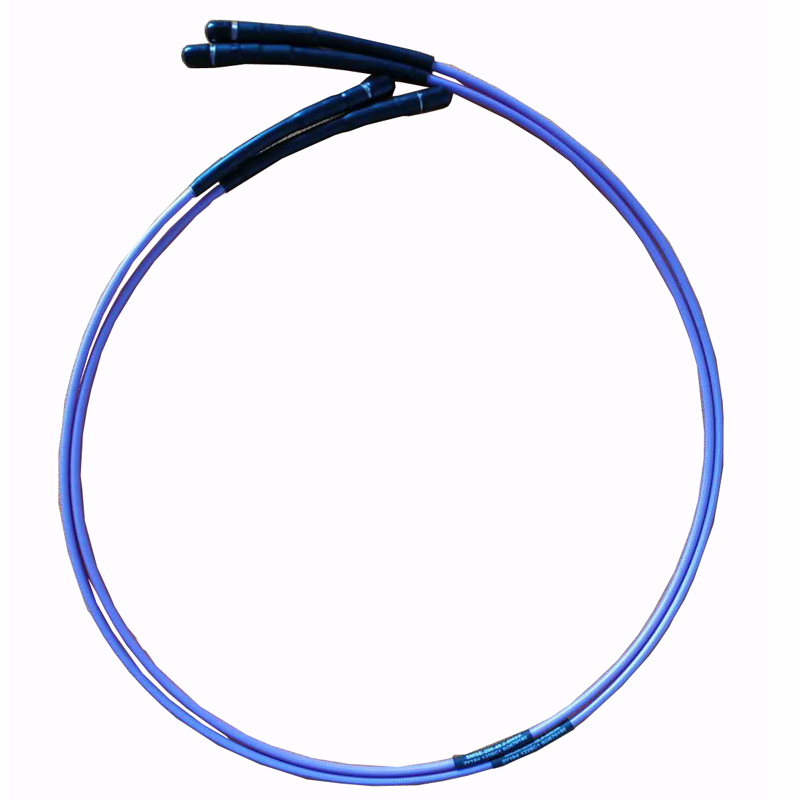

The Lab Flex 200UV cable incorporates a Carbon/Teflon layer between the outerconductor shields that yields a higher number of  flexure cycles and low VSWR performance. This layer minimizes frictional heat buildup between the outerconductor shields when the cable is flexed. This design significantly enhances  the overall flexure life of the cable assembly. This Carbon/Teflon layer also acts as an reflection absorber that improves VSWR performance and makes this cable assembly an ideal candidate for test and measurement applications. This cable is particularly well suited for testing low noise,  active components as the Carbon/Teflon layer also contributes to low noise cable assembly performance.

Features/Benefits

• Mode Free Operation to 32GHz

• 80% Velocity Low Loss Dielectric

• Superior Shielding Effectiveness

• Available with Protective Coverings of:

• Armor

• Weatherized

• Armor/Weatherized

• Stainless Steel Connectors

• Phase Matched Sets Available (standard tolerance is ± 2.8 degree per GHz)

Applications

• Test Cables

• Test Head Cables

• Switch Interconnects

• Antenna Systems

• Radar Systems

1、SMSE-200-48.0-NMRE(N型彎頭）  SME-N 彎頭 長1.2m 18G

2、SMSE-200-48.0-SMSE                     SME-SME,長1.2m 18G

3、SMSE-200-30.0-NMRE(N彎頭）     SME-N彎頭 長0.76m 18G
