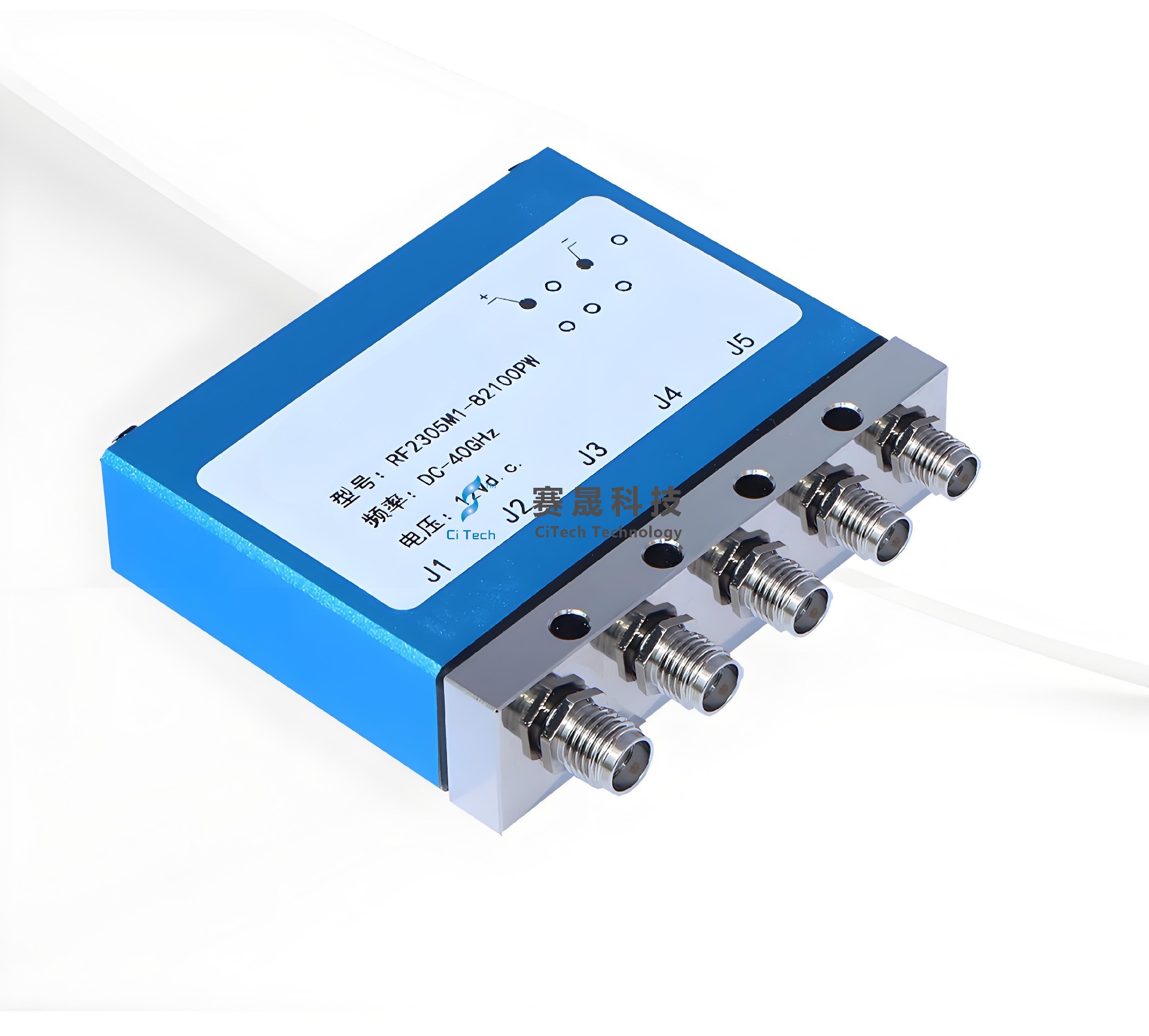

SP3T, Single Pole Double Throw reflective type, DC to 54GHz

The RF23 (DP3T) series offers various common types of connectors such as SMA, 2.92, 2.4, etc., with frequencies covering DC-54GHz; Provide reflective type; Provide a maximum lifespan of 200w cycles; We offer over 300 optional models including Latching/daiilsafe, Self cut off/none, 12/24/28Vd. c. driving voltage, TTL/common positive/common negative, Pin solder pins/D-Sub 9/mini D-Sub15, etc.

Key Features

·Long Service Life

SMA/2.92 interfaces: Up to 2 million cycles

2.4mm interfaces: Up to 1 million cycles

· High Frequency Coverage

SMA interface: DC-20GHz (with selectable bands: 20/18/12.4/6/3GHz)

2.92mm interface: DC-40GHz (with selectable bands: 40/26.5GHz)

2.4mm interface: Up to 54GHz (with selectable bands: 54/50GHz)

· High Repeatability (MAX-MIN)

SMA interface: ≤0.03dB

2.92mm interface: ≤0.05dB

2.4mm interface: ≤0.10dB

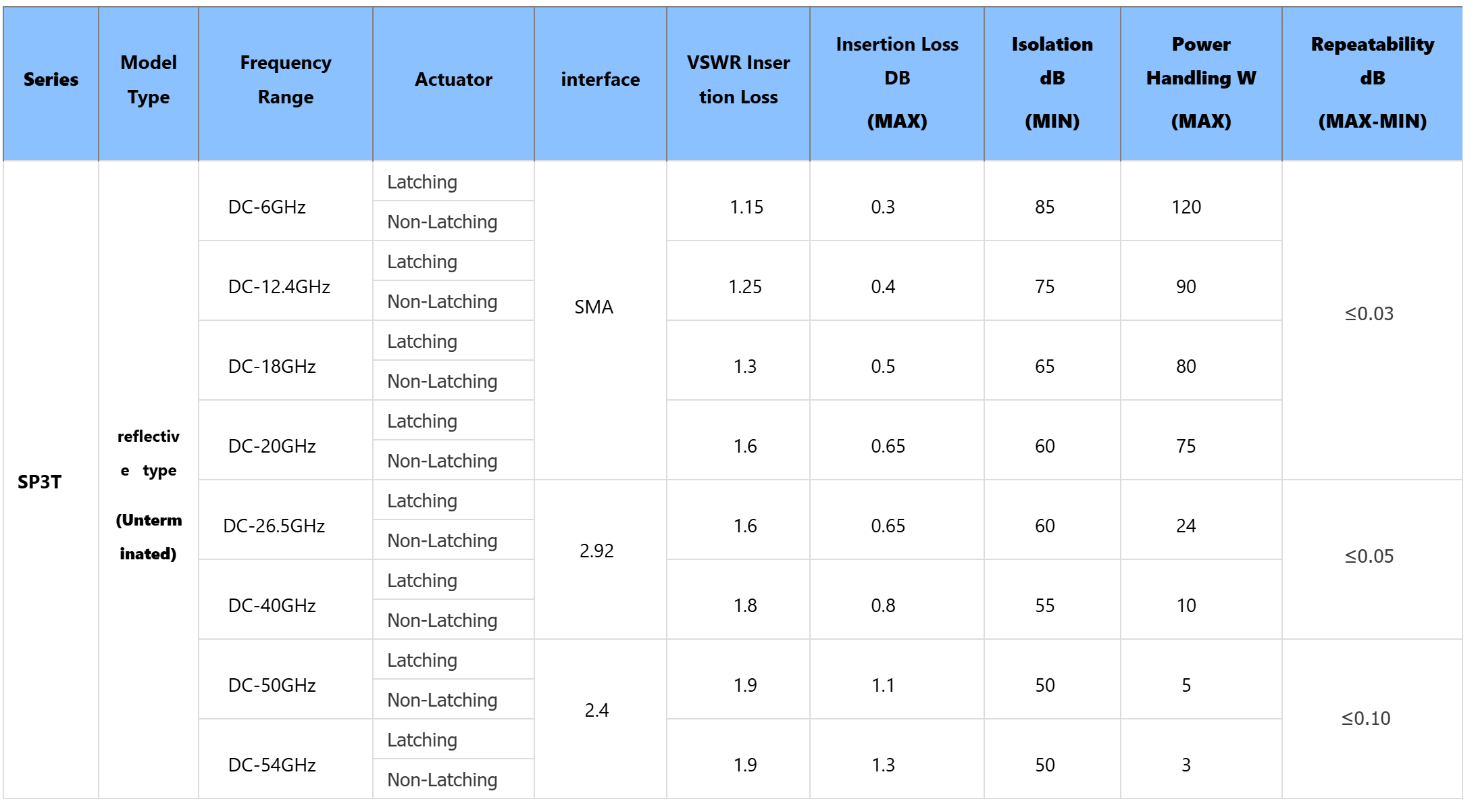

Models & Specifications

Note: The table provides typical RF/electrical parameters. For detailed specifications of specific models, refer to the product datasheet. Contact us for customized selection support.

                                                                                                          Selection Rules
