u Wide Variety Of I/O Options!
u Great Isolation Up To 18GHZ!
u Models To Fit Any Application!
u Manual operation !
Perfect for 802.11a, b, g, Wireless LAN, Wi-Fi, Wi-Max, Cellular, Paging, PCS, GPS, GSM 3G, RFID, Zigbee, Bluetooth?, Blade Servers, Cards, WAP’s, Production Testing, Quality Assurance and other Wireless Devices Testing or just as a RF Shielded Test Enclosure.
+86 18038170771Specification
Outer Dimension： | (L)700x (W)500 x (H)600mm |
Inner Dimension： | (L)550x (W)400 x (H)500mm |
Material: | metal plate |
Surface Color: | white ( According to the customer request custom color) |
Weight | Apron 50Kg |

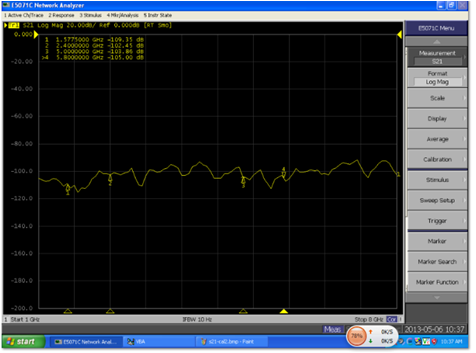

Shielding Isolation | 800MHz ~6GHz >90dB;6GHz~12GHz >80dB;12GHz~18GHz >70dB; |
I/O Connectors: | DB9*1,DC2.0*2,USB*2,RJ45*2,SMA*6 |
測(cè)試的技術(shù)依據(jù)(Reference documents for the calibration)：
GB/T 12190-2006 電磁屏蔽室屏蔽效能的測(cè)量方法 Method for measuring the shielding effectiveness of Electromagnetic shielding enclosures
