We provide xiaomi with a coupling test shielding box system.
a、antenna coupler ：coupling testing
| 2G測試 | TX：Power |
| Freq Error | |
| RX：RSSI | |
| （GSM850 ;GSM900 ;GSM1800;GSM1900.etc) | |
| 3G測試 | TX：Power |
| RX：RSCP | |
| (WCDMA_B1 ;WCDMA_B2 ;WCDMA_B4 ;WCDMA_B5 ;WCDMA_B8；TD-SCDMA；CDMA 2000；GPRS .etc ) | |
| 4G測試 | TX：Power |
| RX：RSCP | |
| (LTE_B1 ;LTE_B2;LTE_B3 ;LTE_B4 ;LTE_B5 ;LTE_B7 ;LTE_B8 ;LTE_B17;LTE_B20 ;LTE_B28 ;LTE_B34 ;LTE_B38 LTE_B39 ;LTE_B40 ;LTE_B41 .etc) | |
| 4G分集測試 | RX：RSRP |
| (LTEDiv_B1 ;LTEDiv_B2 ;LTEDiv_B3 ;LTEDiv_B4 LTEDiv_B5 ;LTEDiv_B7 ;LTEDiv_B8 ;LTEDiv_B17 LTEDiv_B20;LTEDiv_B28;LTEDiv_B34 ;LTEDiv_B38 LTEDiv_B39 ;LTEDiv_B40 ;LTEDiv_B41 .etc) | |
| WIFI測試 | TX：Power |
| RX：RSSI | |
| 11a,b,g,n ,ac.etc | |
| GPS測試 | CN0(GPS1.575G; CNRModeCNR.etc) |
| BT測試 | TX：Power |

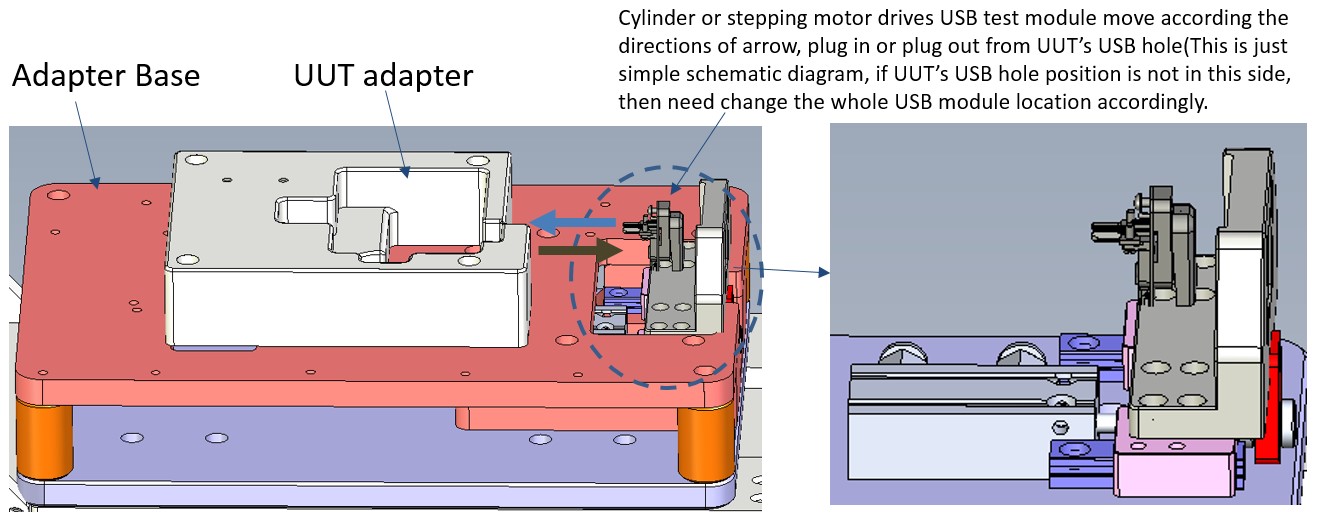

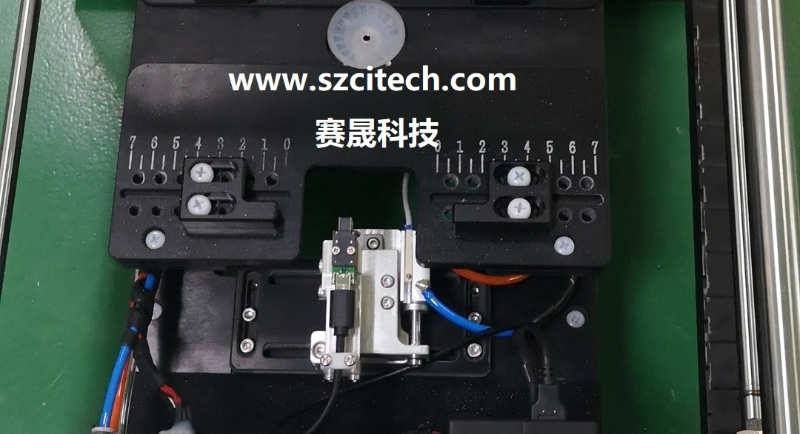

b、USB self-adaption test module：
Use small size cylinder or stepping motor to drive，can achieve UUT’s automatic USB connection in all kinds of automatic testers.
1,Negative tolerance USB head, doesn’t abrade USB hole of UUT.
2,Self-adaption function, reduce misplug cases
3,Life cycle is very long(>20k times)

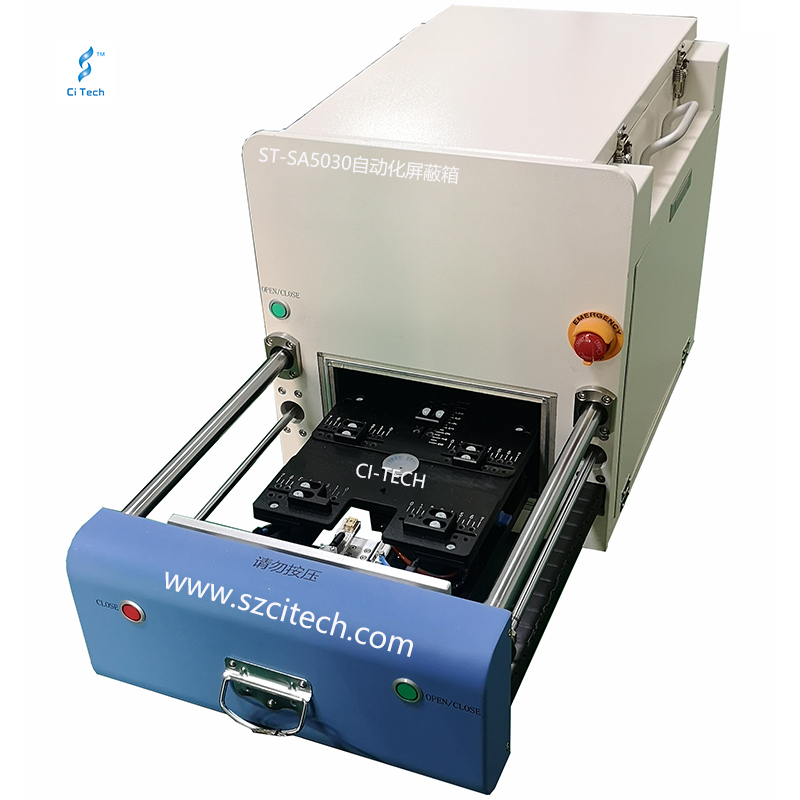

c、RF shielding box
技術參數：

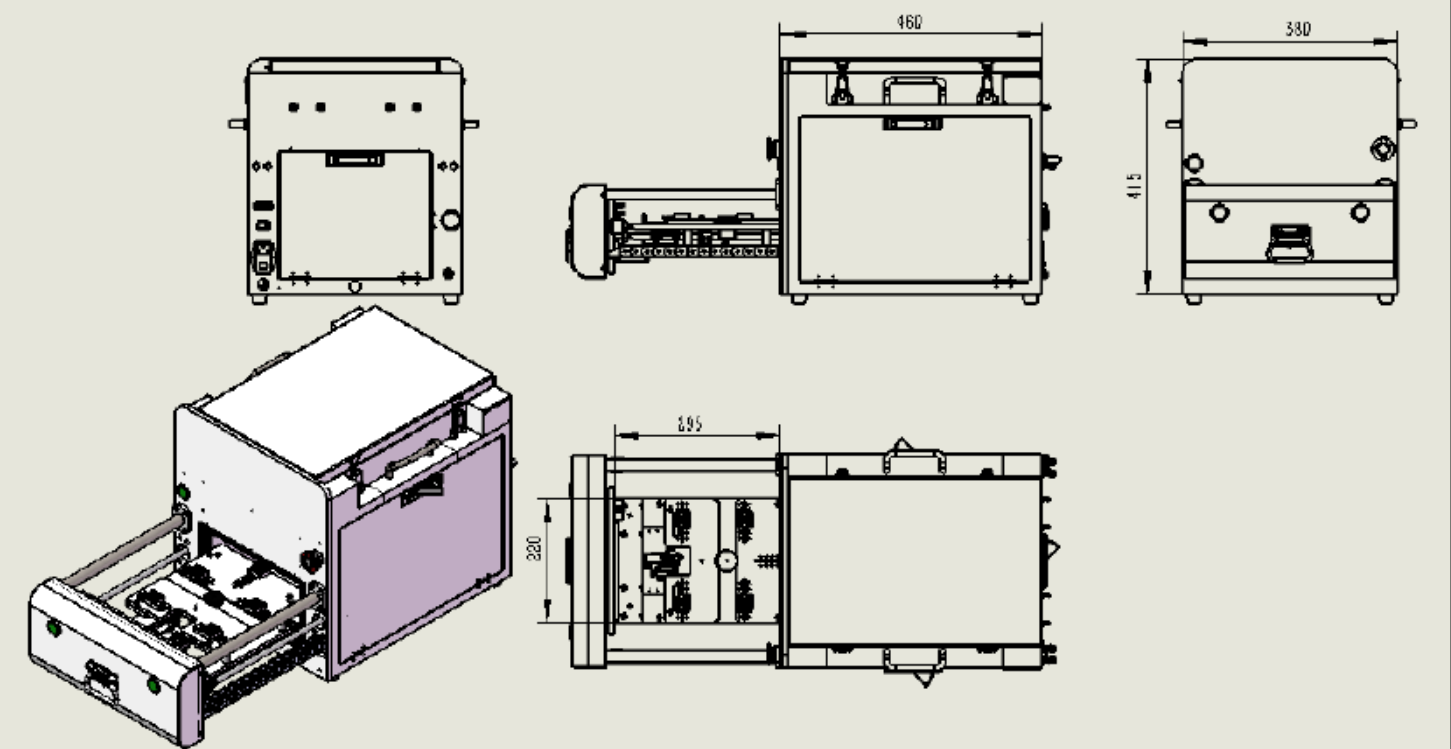

工作尺寸(Inner Working) | (L)370mm x(W) 275mmx(H) 365mm |
外形尺寸(outer Dimension) | (L)540x(W)380x(H) 415mm |
屏蔽效果（Shielding Isolation） | 800MHZ-3GHZ>80DB,3GHZ-6GHZ>70DB |
屏蔽材料Shielding Material | 吸波泡棉Microwave Absorber |
箱體材料（Material） | 鋁板+鈑金焊接 |
萬能夾具尺寸 | (L)180mm*(W)150mm（最大滿足8寸產品） |
表面顏色Surface Color | 白色+藍色 white&blue ( 可以根據客戶要求定制) |
連接端口I/O Connectors | SMA*4,RS232*1, USB*2（可根據客戶要求定制） |
