Consult
Application

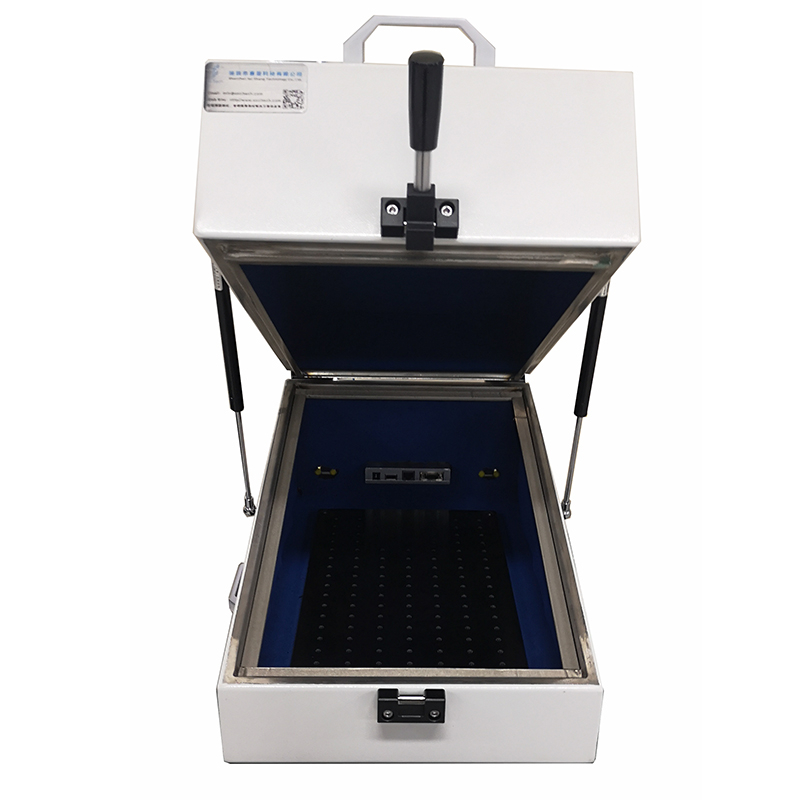

ST-S0035 RF Shielded Box provides RF isolation and signal connections necessary for mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D , service QC and manufacturing
Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.
Features
Reliable high RF shielding up to 6GHz
Manual operation
Easily customizable to meet various test needs
Shock absorbers on lid
Specification
Outer Dimension inner dimension | （L）520 x（W）320 x（H）260mm （L)460x（W）260x（H）220mm |
Shielding Isolation | 800MHz~6GHz>70dB |
Shielding Material | Microwave Absorber |
Material | metal plate |
Weight | approx.11kg |
Surface Color | Grey white or coffee( According to the customer request custom color) |
I/O Connectors | SMA*4 |
DC*1 | |
RJ45*1 | |
USB*1 |
RF shield box、shielded boxs、antenna coupler、acoustic chamber
