It is applied to the automated testing of terminal communication products such as mobile phones, gateways, intelligent hardware and intelligent modules.
It is applied to the automated testing of terminal communication products such as mobile phones, gateways, intelligent hardware and intelligent modules.
· Support near-field testing and far-field testing of antennas of communication products, and realize antenna consistency testing and antenna performance testing;
· Support antenna coupling test of 2G, 3G, 4G, WIFI, BT, GPS and other standards;
· Adopt standardized shielding box design with shielding effect greater than 80dB to provide a stable testing environment for terminal communication products;
· Adopt universal automated fixture design to support multi-specification communication product testing.

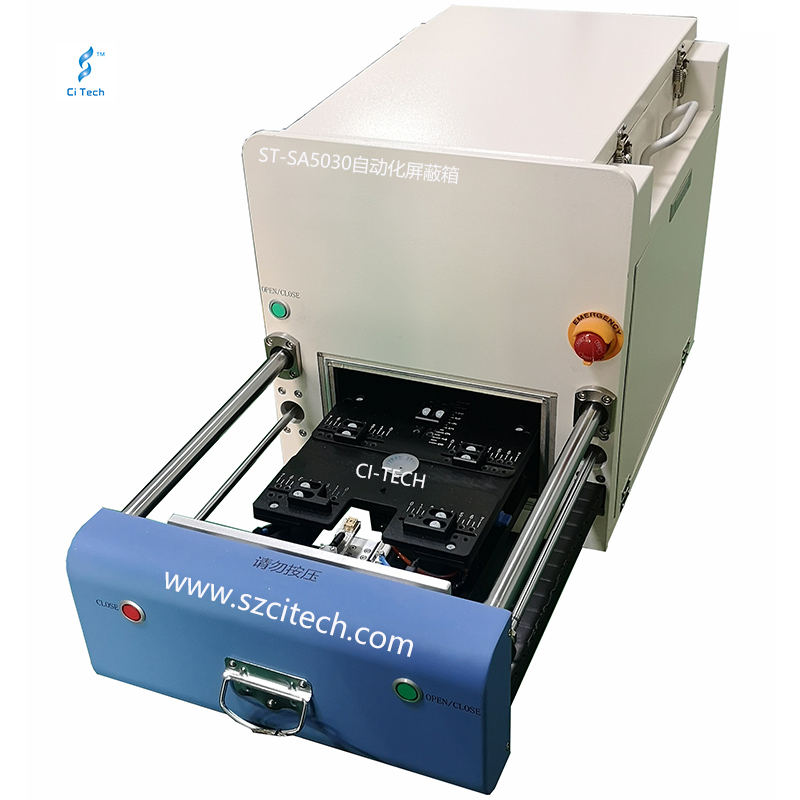

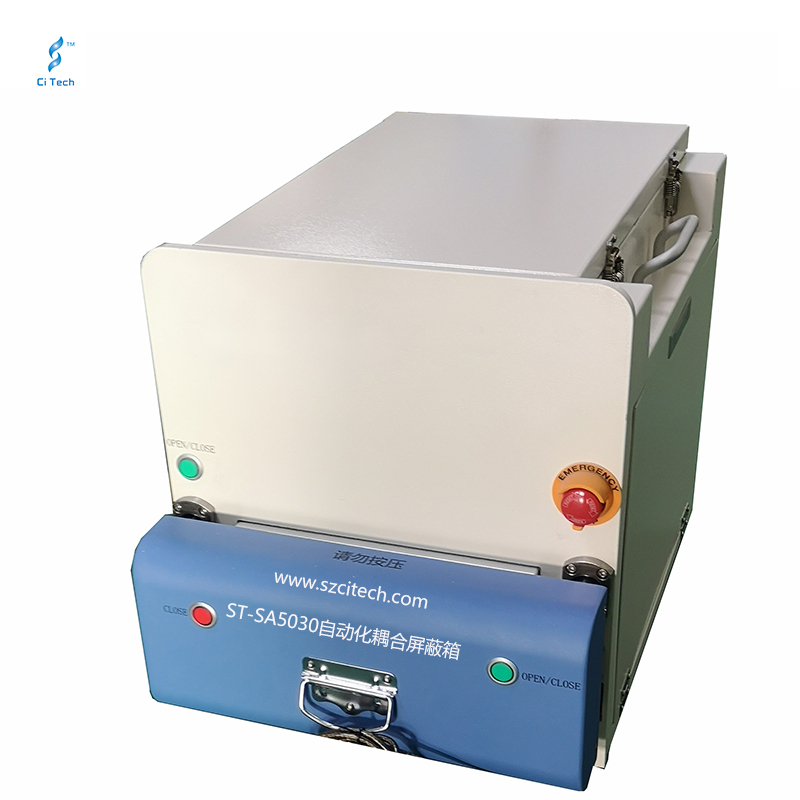

Mobile phone coupling shield box (can be two antennas and three antennas) Universal fixture size (L)180mm*(W)150mm (maximum 8 inch products)
+86 18038170771Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.
技術參數：
工作尺寸(Inner Working) | (L)370mm x(W) 275mmx(H) 365mm |
外形尺寸(outer Dimension) | (L)540x(W)380x(H) 415mm |
屏蔽效果（Shielding Isolation） | 800MHZ-3GHZ>80DB,3GHZ-6GHZ>70DB |
屏蔽材料Shielding Material | 吸波泡棉Microwave Absorber |
箱體材料（Material） | 鋁板+鈑金焊接 |
萬能夾具尺寸 | (L)180mm*(W)150mm（最大滿足8寸產品） |
表面顏色Surface Color | 白色+藍色 white&blue ( 可以根據客戶要求定制) |
連接端口I/O Connectors | SMA*4,RS232*1, USB*2（可根據客戶要求定制） |
